Chameleon Bypass Rail Framework - Amico Security Products

Chameleon^®uses a bypass rail system which is very flexible in terms of post spacing and offers a great variety of fence infills. Infills range from expanded metal panels to welded wire panels and palisade fencing.

The patented Chameleon^® System, U.S. Design Patent No. D996,198 is available with round posts or square posts, named Chameleon^®, or Chameleon^2® respectively.

The Chameleon^® System allows you to upgrade an existing chain link fence to the AMIGUARD Perimeter System utilizing existing fence posts. This allows you to upgrade an existing chain link fence to a Perimeter System with anti-cut and anti-climb capability.

KEY BENEFITS

Saves Time

This unique system saves up to 40% in time and materials over other solutions.

Flexible Bypass Post System

Chameleon uses a bypass rail system which is very flexible in terms of post spacing

Allows Using Existing Fence Posts

Chameleon allows you to utilize your existing fence posts and grounding systems that are already set in place.

Increased Security

Chameleon can increase the security level of an existing standard chain link fence.

Unlimited Mesh Options

Chameleon has various mesh options which cover a wide range of applications.

Round or Square Posts

Chameleon works with Round or Square posts making it very versatile.

COMPONENTS

AMIGUARD AMICLAMP^®

The patented Chameleon^® System, U.S. Design Patent No. D996,198, allows you
to upgrade an existing chain link fence to the AMIGUARD^® Perimeter System.

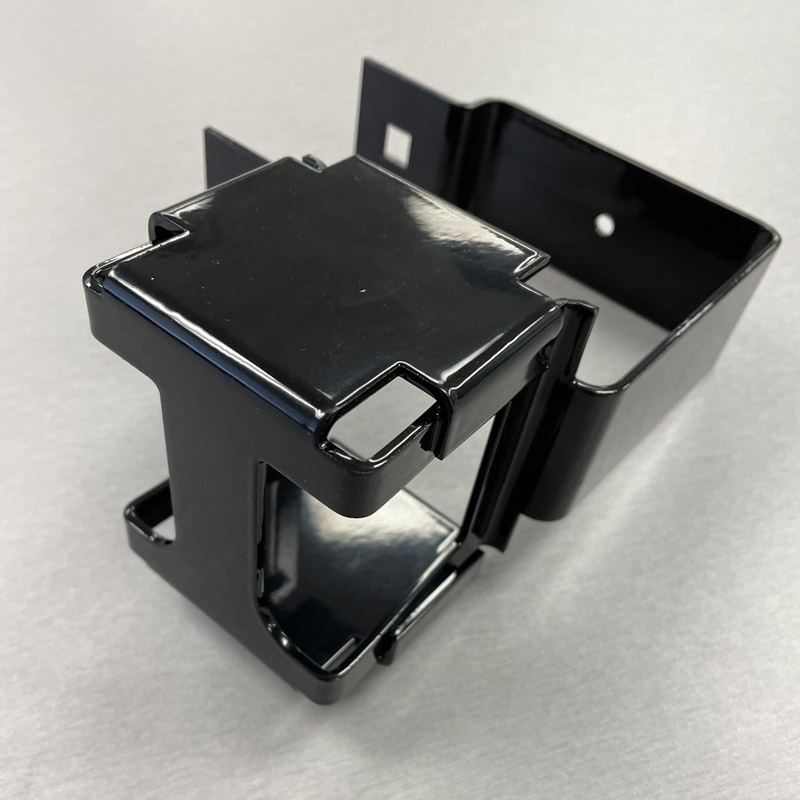

The patented AMICLAMP^® design allows easy attachment to an existing post to accommodate the AMIGUARD Infini-Rail^®. The Chameleon system works with various round post sizes including:

2-3/8”, 2-7/8”, 4”, and 6-5/8”.

The Chameleon^2® system includes square posts ranging from:

3”x3”, 4”x4”, 6”x6” to 8”x8”.

Security mesh can then be attached by utilizing AMIGUARD Diamond Fasteners^®.

Our unique approach incorporates innovative solutions to solve common concerns including: security, aesthetics, seamless design, ease of installation, incorporation of impact and fiber optic cables and anti-cut / anti-climb mesh options.

INFINI-RAIL^® SYSTEM

With our continuous Infini-Rail^® system, AMICO Security’s Perimeter Systems are already at the forefront regarding ease of installation.

With the introduction of our new fastenerless friction-fit splice system, we made the installation even easier.

Compared to traditional rail fencing systems, our newly updated Infini-Rail^® system allows time saving of up to 50%.

AMIGUIARD^® INFILLS

The Chameleon^® and Chameleon^2® Bypass Framework works with any of the AMIGUARD® Infills like:

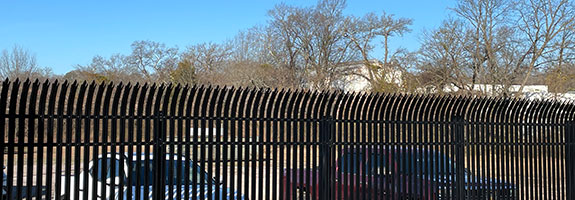

AMIGUARD 4000 Series Palisade Panels
AMIGUARD 5000 Series Welded Wire Panels

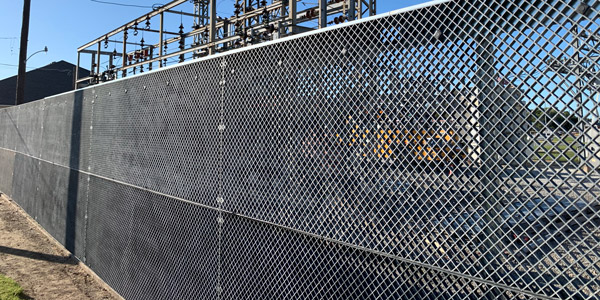

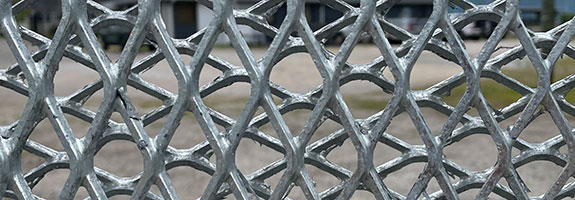

AMIGUARD 6000 Series Security Expanded Metal Mesh
AMIGUARD 7000 Series High Security Expanded Metal Mesh

The AMIGUARD DualGuard Mesh™ contains two infills for added security and a significant increase in breach times.

FINISHES

AMICO Security offers two highly corrosion resistant finishing options:

Hot-Dip Galvanizing
AMICOAT™ Powder coating over E-Coating or primer

All of AMICO Security’s finishing processes involve a zinc layer for superior corrosion protection. Corrosion is an electro-chemical process caused by an electrical potential between two small areas of steel, anodes and cathodes, and an electrolyte.

Additionally, The electrolyte, most often water, starts the corrosion reaction by connecting the anode and with the cathode resulting in iron oxide, which is the brown, flaky rust typically seen on unprotected steel
