AMIGUARD^® 5000 Series Meshes

The AMICO Security AMIGUARD® 5000 Series Wire Fence System addresses the drawbacks of chain link fencing. It enhances safety in a cost-effective system without compromising visibility or aesthetics.

AMICO Security’s Wire mesh panels are produced in one of the largest plants for reinforcement products and fencing panels in the world. High employee retention and experience positions AMICO Security Products as an industry leader in quality and safety. AMICO’s continuous attention and improvement of its manufacturing processes ensures quality products, working conditions and improved environmental conditions.

AMICO Security Wire system includes 5500 double wire mesh, 5600 3D wire mesh and 5700 wire mesh for enhanced security. These meshes are coated with a polyester powder coating over galvanized wire. Panels come in 8- or 10-feet heights.

All meshes can be installed using the AMIGUARD® rail system or the AMIGUARD® rail-less system. The Chameleon retrofit system provides the solution for replacing chain link fabric with welded wire mesh while keeping the existing posts.

COMPONENTS

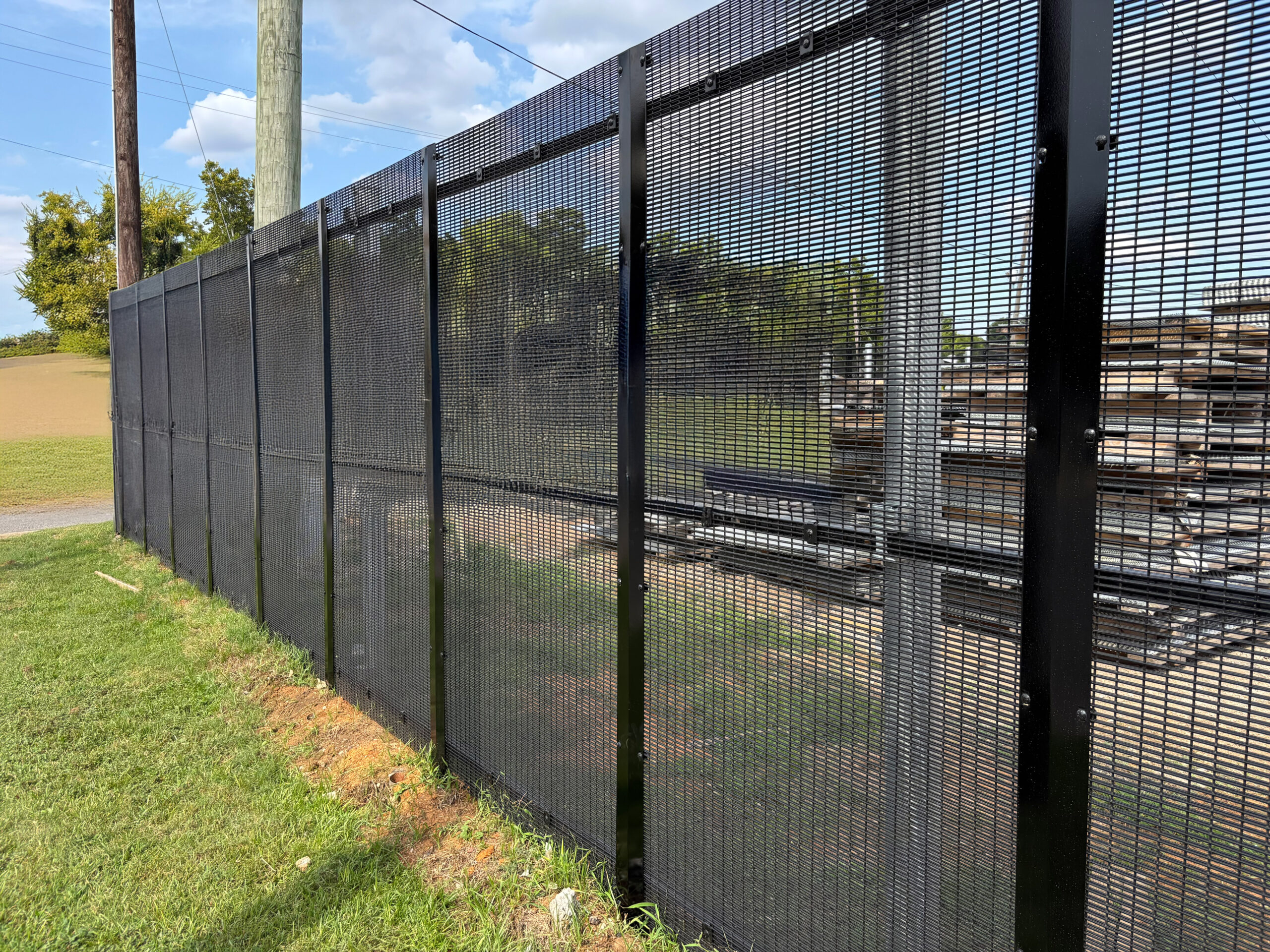

5700 MESH

The 5700 wire mesh design makes it extremely difficult to scale or cut the fence without compromising visibility or aesthetics. The 0.5” spacing between the wires prevents getting a foothold for climbing, and it delays or deters cutting as power tools won’t fit in.

The 5700 Mesh is ideal for secure applications such as government, utilities, transportation, etc.

DOWNLOAD PDF

5600 MESH

The 5600 3D V-mesh is a cost effective solution for schools, residential, public and light industry applications. The 5600 Mesh is ideal for the AMIGUARD® rail-less Spider
Clamp System since the integrated V gives the 5600 Mesh a structural rigidity similar to a fence mounted on a rail system.

DOWNLOAD PDF

5500 MESH

The 5500 mesh is a durable double wire panel and is available in hot dipped galvanized finish or the standard polyester powder coating over galvanized wire. The rods are welded at all intersections for strength and rigidity. These very solid .31”/.24”/.31” (8/6/8mm) double wire fences are perfectly suited for industrial estates, sports stadiums, public buildings, airfields, schools, etc.

DOWNLOAD PDF

AMIGUARD^® PERIMETER SYSTEM

The AMICO Security Wire fencing system is fully compatible with AMIGUARD® Perimeter System Fence utilizing all standard AMIGUARD® components: AMIGUARD POSTS®, Infini-Rail® and Finish Plates®.

CHAMELEON^® BYPASS FRAMEWORK

Chameleon^®uses a bypass rail system which is very flexible in terms of post spacing and offers a great variety of fence infills. Infills range from expanded metal panels to welded wire panels and palisade fencing.

The Chameleon^® System allows you to upgrade an existing chain link fence to the AMIGUARD Perimeter System utilizing existing fence posts. This allows you to upgrade an existing chain link fence to a Perimeter System with anti-cut and anti-climb capability.”

FOR MORE INFO

AMIGUARD^® RAIL-LESS SYSTEM

The AMICO Security AMIGUARD® rail-less Spider Clamp System for the AMIGUARD® 5700 Mesh or the AMIGUARD® rail-less U-Bolt system for the AMIGUARD® 5500 & 5600 meshes are cost effective solutions for applications such as recreation: education facilities, public buildings, self-storage, parking facilities etc.

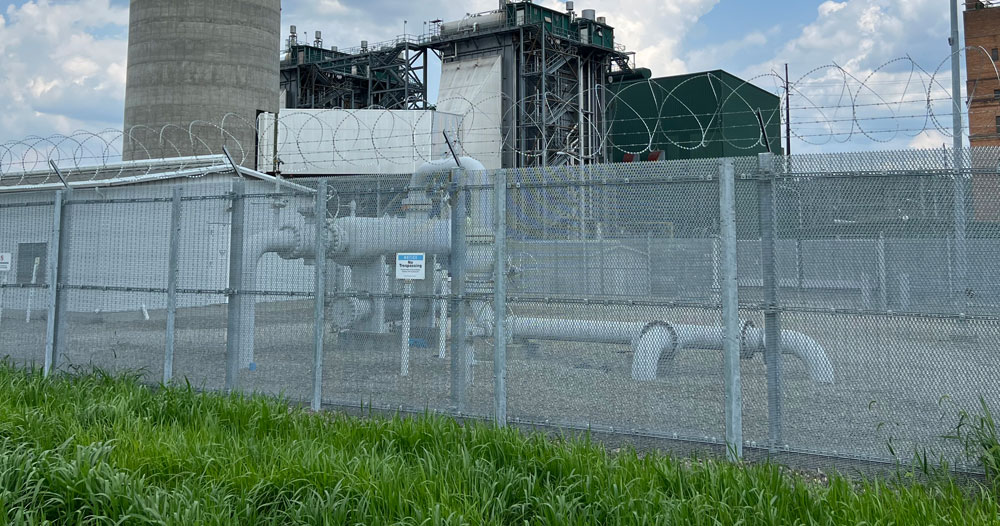

AMIGUARD DUALGUARD™

The AMIGUARD DualGuard™ dual layer infills provides added security. The additional infill significantly increases the time required to breach the fence. While access to the first mesh is straight forward, access to the second mesh of the DualGuard™ mesh is much more difficult resulting in a significant increase in breach time. Tests have shown that the times to breach two meshes mounted a few inches parallel will require at least twice the amount of time required to breach the two meshes individually. This is a true occurrence of 1 + 1 > 4!

FOR MORE INFO

AMIGUARD^® 5000 SERIES MESHES

AMIGUARD 5500 RAILLESS GENERIC PACKAGE 1

AMIGUARD 5500 RAILLESS GENERIC PACKAGE 2

AMIGUARD 5600 RAILLESS 6FT-TALL ELEVATION WITH CAPSHEET

AMIGUARD 5700 ON CHAMELEON2 FRAMEWORK PACKAGE 1

AMIGUARD 5700 ON CHAMELEON2 FRAMEWORK PACKAGE 2

Our Engineering Department is here to assist you with all aspects of the design process for your project. Simple drawings to Engineered Stamped drawings are just a few things they can help with. They are always ready to collaborate with your Engineering Team to ensure your AMICO Security System is installed correctly.
