AMICO Security developed the ANC® Non Conductive fence system as a total perimeter solution to offer a safe, aesthetically pleasing, non-conductive, radar friendly alternative to traditional fencing. ANC® is growing rapidly in popularity and has many applications and advantages.
KEY BENEFITS
Cost Savings
Can be less expensive than the overall installed cost of grounded chain link fence.
Secure
M5 security rating in compliance with the ASTM standard.
Install Options
Can be installed to meet any layout or grade changes.
Non Conductive
Tested to be non-conductive.
Corrosion Resistant
100% non-metallic and corrosion resistant.
20 ft High
Up to 20 ft high.
Retrofitting
Can be retrofitted to existing metallic posts.
Pedestrian and Vehicle
Pedestrian and vehicle swing and slide gates.
Cap Sheets
Cap sheets are available to deter climbing.
Lightweight
Panels are light enough for a 2-man crew.
BEST-IN-CLASS QUALITY
With our 40 years of proven performance, choosing one of our corrosion resistant, fire retardant, non-conductive solutions is a safe choice for a “Best-in-Class” quality product. Based on 3rd party test reports, we can state our composite products are Heavy Metal free proving our commitment to the environment.
MARKETS & COMPONENTS

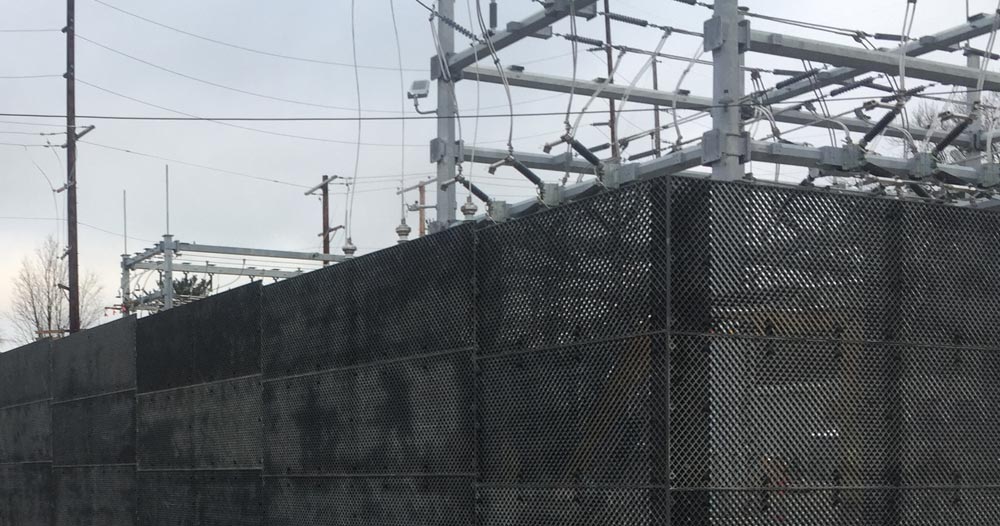

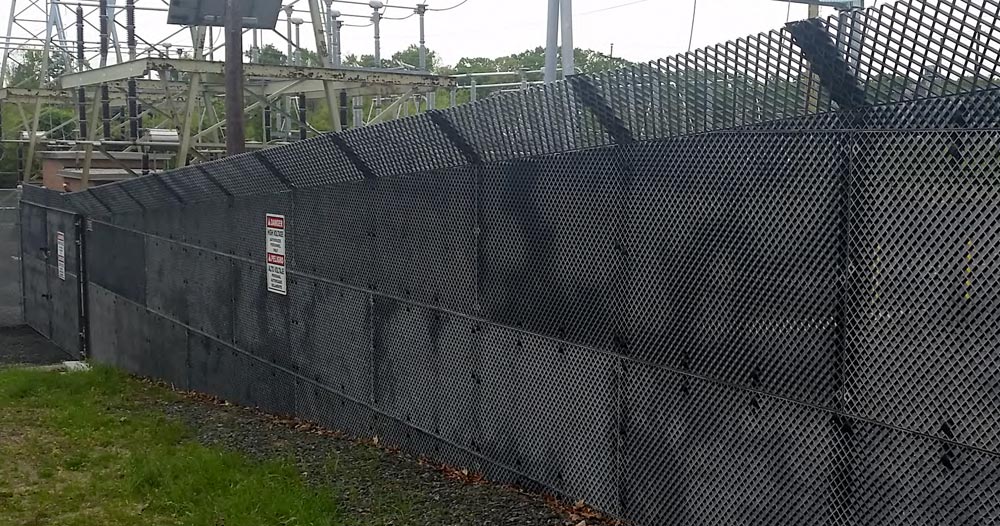

POWER & ENERGY SECTOR
Secure substations, power facilities and energy companies throughout the world are becoming increasingly aware that ANC® is the best solution to eliminate unforeseen occurrences related to touch and step potential.
ANC® can help to ensure that the general population living around and that power employees who work around substations are safer. Dielectric tests have been conducted by a certified laboratory in which leakage current and flashover voltage tests revealed no electrical conductivity. As population centers evolve, the need for added safety and security is required.
AIRPORTS & AVIATION SECTOR
As the need for airport security increases, AMICO has the answer. Airports throughout the globe are searching for Perimeter Systems that won’t interfere with radar signals. While traditional high security metal fencing systems reflect radar, creating false images, ANC® fencing doesn’t show this interference. In addition to being safe and secure, ANC® provides a clean aesthetically pleasing look that blends into the landscape.
ANC® fencing is also used in non-aviation related US Governmental facilities wherever radar is in use for site protection and/or in highly corrosive coastal environments.
ANC® COMPOSITE SECURITY FENCE SYSTEM
The ANC® Composite Fence System combines non-conductivity and security into an easy to install solution for the energy, water, air, and transportation industries. The system can be installed as new or retrofit construction and steel posts can be used depending upon the recommendation from your grounding engineer. Metal posts and fittings are available.
Threaded fasteners bolt through the panels and tighten up securely using AMICO® panel plugs.
All fence components are available non-metallic and non-conductive.

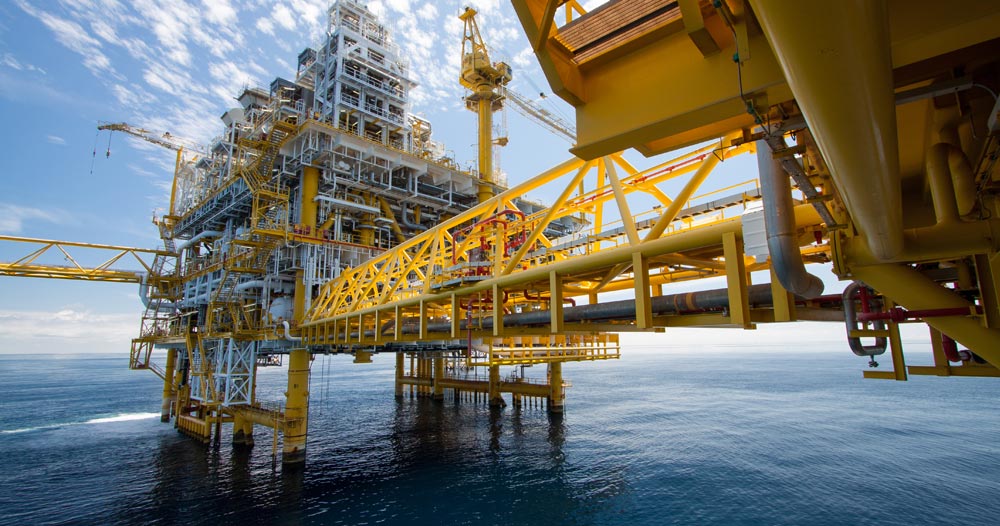

ENVIRONMENTAL DURABILITY
ANC® was primarily designed to survive wet, hot and humid conditions in the Gulf Coast and offshore. The material is fiberglass composite with UV inhibitors throughout, designed for extreme sun exposure and the highly corrosive environment.
ANC® CHAMELEON® HYBRID SYSTEM
ANC® Chameleon® Hybrid System is a combination of ANC Non Conductive components on the outside and Chameleon Retrofit components on the inside.
KEY BENEFITS
CORROSION RESISTANT
100% non metallic, non-conductive from the outside.
SECURE
M5 security rating in compliance with the ASTM standards.
RETROFITTING
Allows you to utilize existing fence post.
TIME SAVINGS
Saves time (up to 40% over other fence systems and materials.
INSTALL OPTIONS
Allows you to utilize existing grounding systems in place.
DRAWING
ANC SAFEGUARD™ MESH
AMICO Security offers a wide range of ANC SAFEGUARD™ Meshes. Mesh patterns range from our traditional diamond pattern to anti-climb and anti breach square or rectangular patterns. All meshes offer a safe, aesthetically pleasing, non-conductive, radar friendly alternative to traditional security fencing.
ANC SAFEGUARD™ Mesh | Mesh Pattern | Nominal Opening Dimensions (in) (H by | W) | Percent Open Area | Mesh Thickness (in) | Weight lbs per ft2 |
ANC SAFEGUARD™ 1050 | Diamond | 2.25 | 2.25 | 72% | 0.50 | 1.36 |
ANC SAFEGUARD™ 2100 | Diamond | 31.75 | 1.75 | 68% | 1.00 | 2.36 |
ANC SAFEGUARD™ 3100 | Square | 0.50 | 0.50 | 44% | 1.00 | 4.75 |
ANC SAFEGUARD™ 4200 | Rectangular | 0.50 | 1.50 | 48% | 2.00 | 8.40 |
ANC SAFEGUARD™ 4225 | Rectangular with solid backing | 0.50 | 1.50 | 0% | 2.25 | 10.40 |
ANC SAFEGUARD™ MESHES

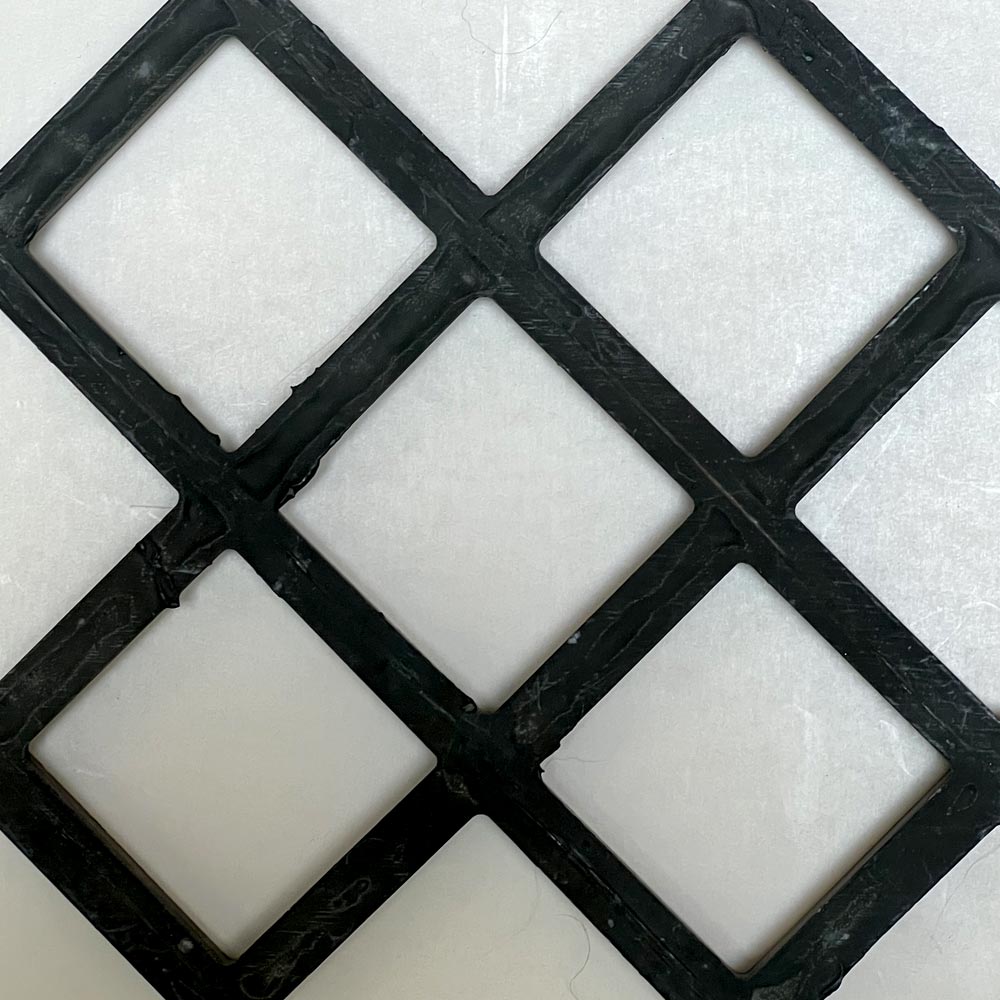

ANC SAFEGUARD™ 1050 Mesh
ANC SAFEGUARD™ 2100 Mesh
ANC SAFEGUARD™ 3100 Mesh
ANC SAFEGUARD™ 4200 Mesh
ANC SAFEGUARD™ 4225 Mesh
PROJECT EXAMPLES - ANC SAFEGUARD™ Mesh
Click on image gallery to scroll through photos
ANC DRAWINGS
Click on image gallery to scroll through photos
ANC® NON CONDUCTIVE GATES
AMICO Security developed the ANC non conductive fence system as a total perimeter solution to offer a safe, aesthetically pleasing, non-conductive, radar friendly alternative to traditional fencing. The ANC Non Conductive Swing & Slide Gates are part of this non-conductive product family.
ANC is growing rapidly in popularity and has many applications and advantages. All ANC panels and the frame of the ANC Non Conductive Swing & Slide Gates are non-metallic and non conductive.
Threaded fasteners bolt through the panels and tighten up securely using AMICO tamper-proof wedge plugs. Only a few hardware pieces such as hinges, the inside of the tracks and locks are actually metallic.

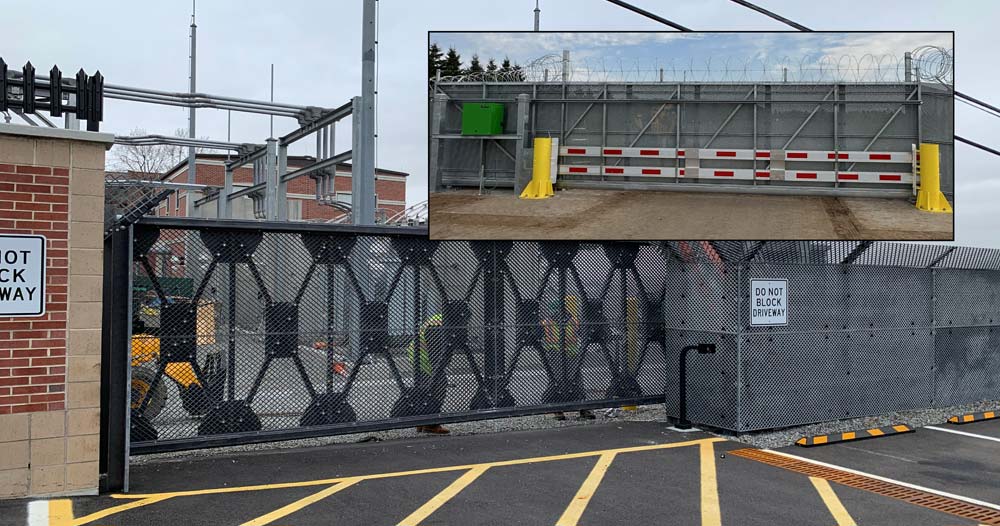

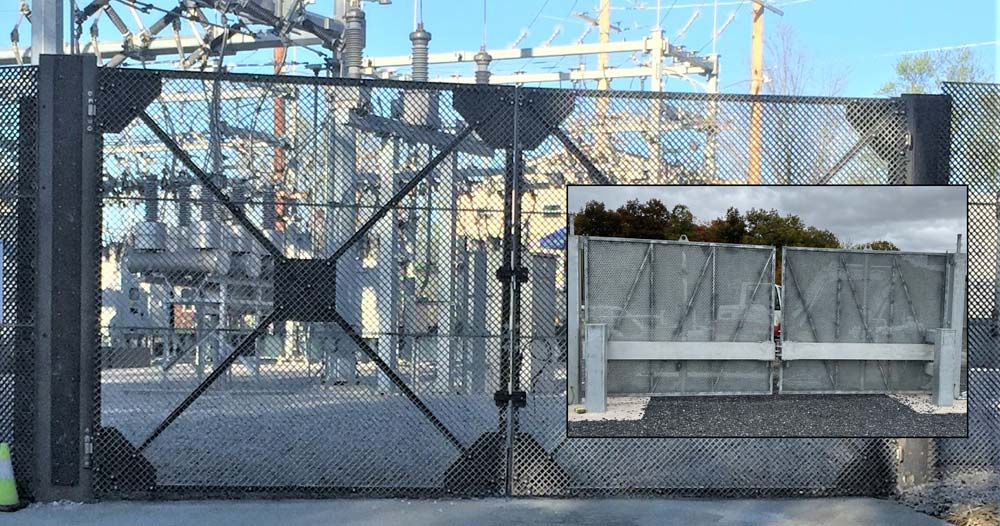

ANC® Non Conductive Steel Hybrid Crash Gates
The ANC® Non Conductive Steel Hybrid Crash Gates are part of our ANC® Non conductive product family. AMICO Security offers the ANC® 9600 Steel Hybrid Swing Crash Gate and the ANC 9700 Steel Hybrid M50 Cantilever Crash Gate. Those crash gates are rated of stopping a 15,000 pound vehicle at 30 mph (M30/K4) up to stopping a 15,000 pound vehicle at 50 mph (M50/K12).
The ANC® Non Conductive Steel Hybrid Crash Gates offer the same look and feel as of our ANC® fence and are non-conductive on the attack side. The Steel framework on the secure side provides the necessary stopping power.
ANC® Temp Fencing
ANC® Non Conductive Temp Fencing from AMICO Security is designed for mobile substations and when substation construction is being performed.
Electric utilities require those type of fences in emergencies when an existing substation is down or needs maintenance, or any temporary situations such as large outdoor events, constructions sites etc. Most electric utilities require temporary security such as temp fencing. Traditional metal temp fencing often requires electric grounding.

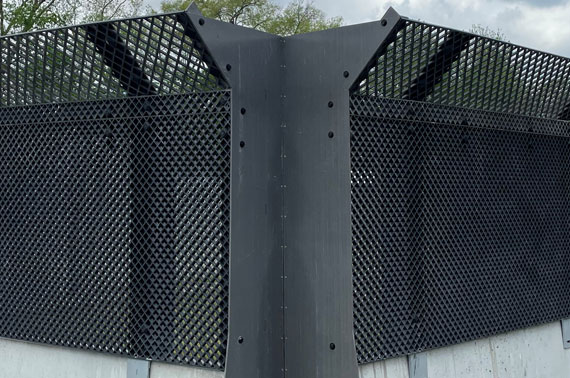

ANC® MODULAR BARRIER FENCE
The ANC Modular Barrier Fence™ a non-conductive fiberglass reinforced plastics (RFP) fence is used frequently by the electric power and transmission industry.
Considering that it often takes many years to upgrade a working substation, utilities need a non-conductive fence to eliminate the requirement for electrical grounding of their temporary fence. Other applications are in highly corrosive environments in coastal areas.
