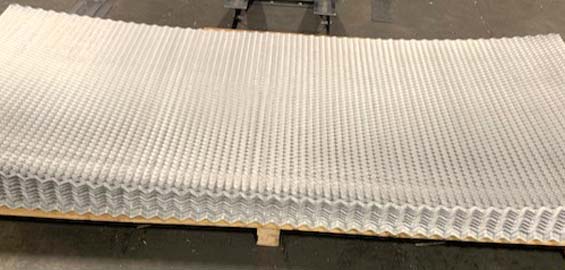

Each AMIGUARD® 6000 Security Mesh and AMIGUARD® 7000 High Security Mesh panel goes through a process of slitting and stretching metal sheet to form the desired style. The Security Panel has strands and intersecting strands called bonds forming a sharp angle to the original plane of the solid sheet. This process creates the unique pattern and allows a single sheet of metal to be processed into several sheets of Security Mesh Panels.
AMIGUARD® 6000 SECURITY and AMIGUARD® 7000 HIGH SECURITY EXPANDED METAL PANELS
AMICO Security offers a wide range of AMIGUARD® 6000 Security Mesh and AMIGUARD® 7000 High Security Meshes. Meshes differentiate by weight and the size of the diamond openings. All meshes are available in Hot Dipped Galvanized or Black Powder coating over zinc primer/zinc e-coating.
AMIGUARD® 6000 Security Meshes
- AMICO Security offers a wide range of AMIGUARD® 6000 Security Mesh typically utilized in commercial fencing and gates. The metal mesh panels differentiate by weight and the size of the diamond openings. All meshes are available in Hot Dipped Galvanized or Black Powder coating over zinc primer/zinc e-coating AMICOAT™ system.
AMIGUARD® 7000 High Security Meshes
- AMICO Security offers a wide range of AMIGUARD® 7000 High Security Mesh typically utilized for security fencing and gates. The Expanded steel mesh panels differentiate by weight and the size of the diamond openings. All meshes are available in Hot Dipped Galvanized or Black Powder coating over zinc primer/zinc e-coating AMICOAT™ system.
AMIGUARD® Mesh Style | Short Way of Diamond | Long Way of Diamond | Percent Open Area | Strand Thickness (in) | Strand Width (in) | Weight per sq. ft. galv. |
6030 | 1.85 | 4.00 | 84% | .134 | .149 | .990 |
6050 | 1.33 | 3.00 | 78% | .134 | .144 | 1.310 |
6100 | 0.500 | 1.20 | 62% | .090 | .096 | 1.634 |
6200 | 0.923 | 2.10 | 64% | .108 | .165 | 1.749 |
6300 | 0.923 | 2.00 | 67% | .134 | .150 | 1.964 |
6800 | 1.33 | 3.00 | 69% | .198 | .203 | 2.651 |
7100 | .500 | 1.20 | 25% | .090 | .188 | 3.10 |
7300 | 1.28 | 3.00 | 6% | .075 | .600 | 3.18 |
7500 | .925 | 3.00 | 14% | .090 | .400 | 3.50 |
7700 | 1.00 | 2.40 | 52% | .179 | .240 | 3.76 |
7800 | 1.00 | 2.25 | 50% | .179 | .250 | 3.92 |
Tolerances: Short Way of Diamond (SWD) & Long Way of Diamond (LWD) 0 + 0.25” per 12” of width.
AMIGUARD® 6000 SERIES SECURITY MESHES

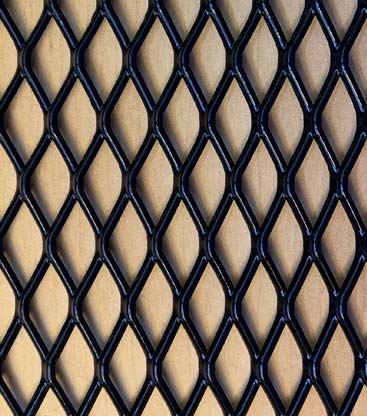

AMIGUARD® 6100 Security Mesh

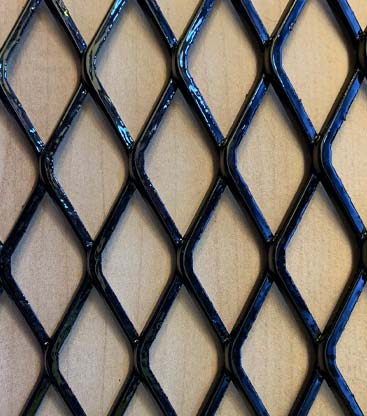

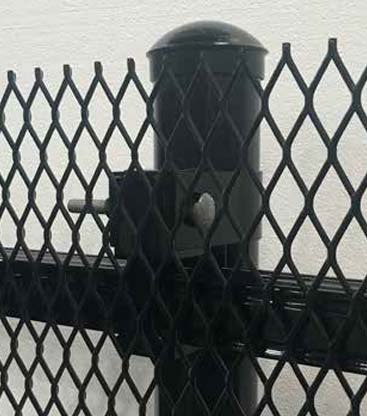

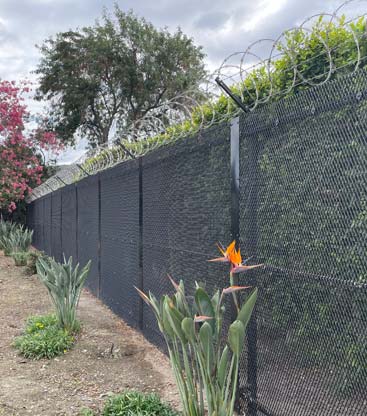

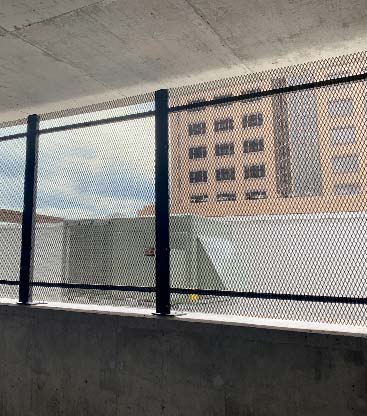

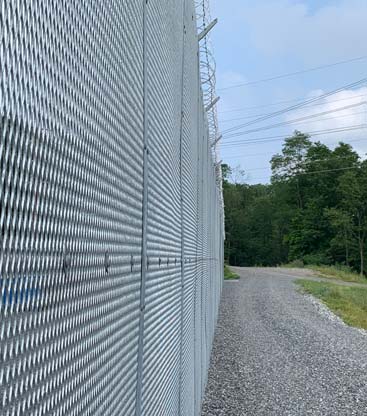

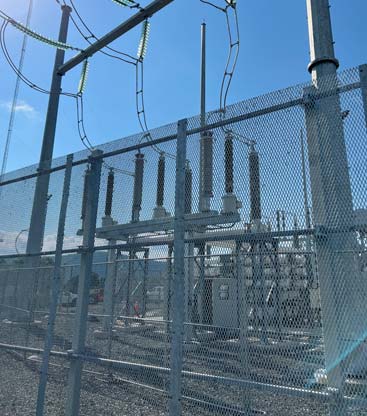

AMIGUARD® 6300 Security Mesh

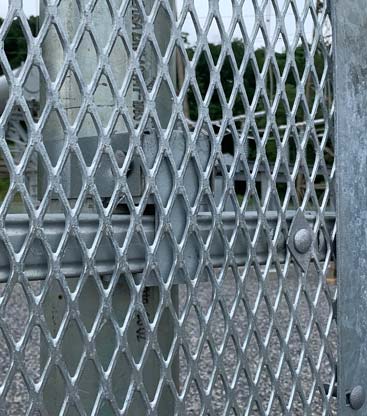

AMIGUARD® 6200 Security Mesh
AMIGUARD® 6800 Security Mesh
AMIGUARD® 6100 Security Mesh
AMIGUARD® 6300 Security Mesh
AMIGUARD® 6200 Security Mesh
AMIGUARD® 6300 Security Mesh
AMIGUARD® 6100 Security Mesh
AMIGUARD® 6300 Security Mesh

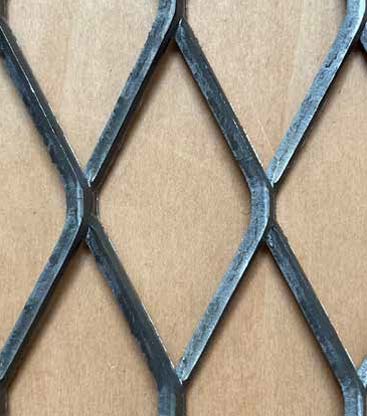

AMIGUARD® 6030 Security Mesh
AMIGUARD® 6300 Security Mesh
AMIGUARD® 6100 Security Mesh
AMIGUARD® 6300 Security Mesh

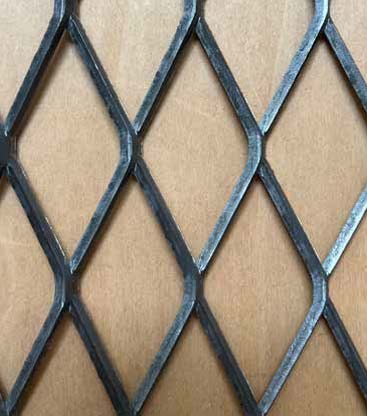

AMIGUARD® 6050 Security Mesh
AMIGUARD® 6100 Animal Shield
AMIGUARD® 7000 SERIES HIGH SECURITY MESHES

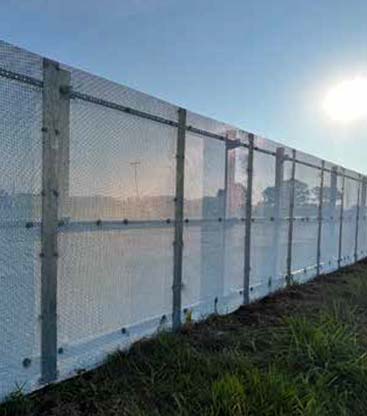

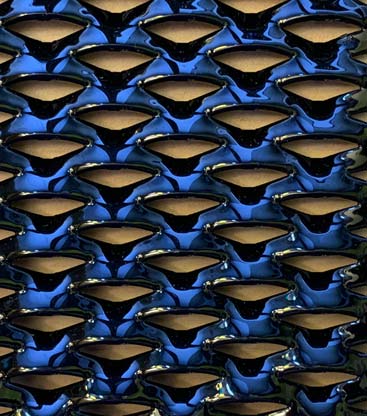

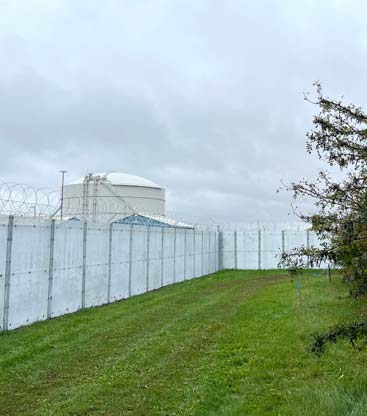

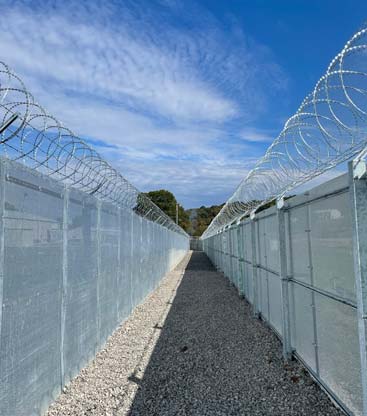

AMIGUARD® 7100 Security Mesh

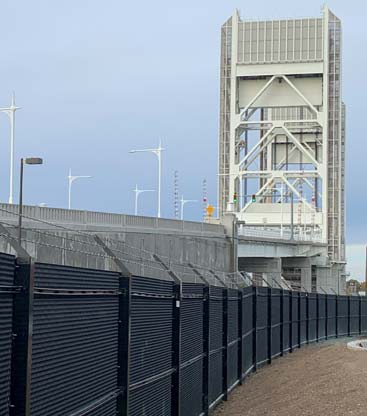

AMIGUARD® 7700 Security Mesh
AMIGUARD® 7100 Security Mesh
AMIGUARD® 7100 Security Mesh
AMIGUARD® 7700 Security Mesh
AMIGUARD® 7100 Security Mesh

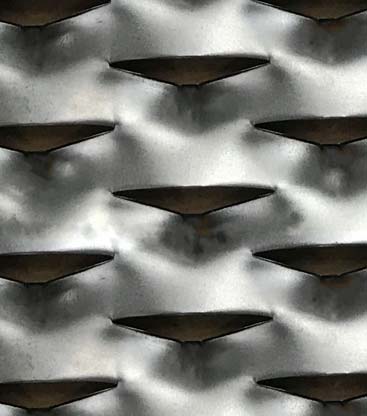

AMIGUARD® 7300 Security Mesh

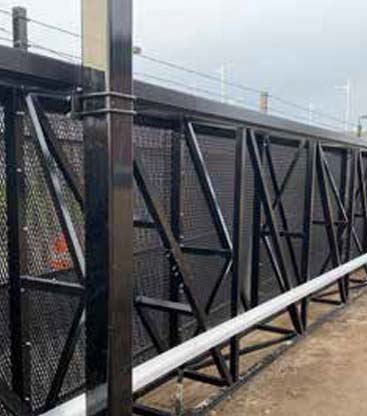

AMIGUARD® 7800 Security Mesh
AMIGUARD® 7100 Security Mesh

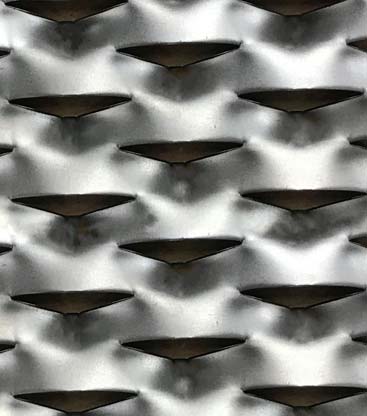

AMIGUARD® 7500 Security Mesh
AMIGUARD® 7800 Security Mesh
AMIGUARD® 7100 Animal Shield
FINISHES
AMICO Security offers two highly corrosion resistant finishing options:
- Hot-Dip Galvanizing
- AMICOAT™ Powder coating over E-Coating or primer
All of AMICO Security’s finishing processes involve a zinc layer for superior corrosion protection. Corrosion is an electro-chemical process caused by an electrical potential between two small areas of steel, anodes and cathodes, and an electrolyte.
Additionally, The electrolyte, most often water, starts the corrosion reaction by connecting the anode and with the cathode resulting in iron oxide, which is the brown, flaky rust typically seen on unprotected steel
