AMIGUARD® 4000 PALISADE FENCE

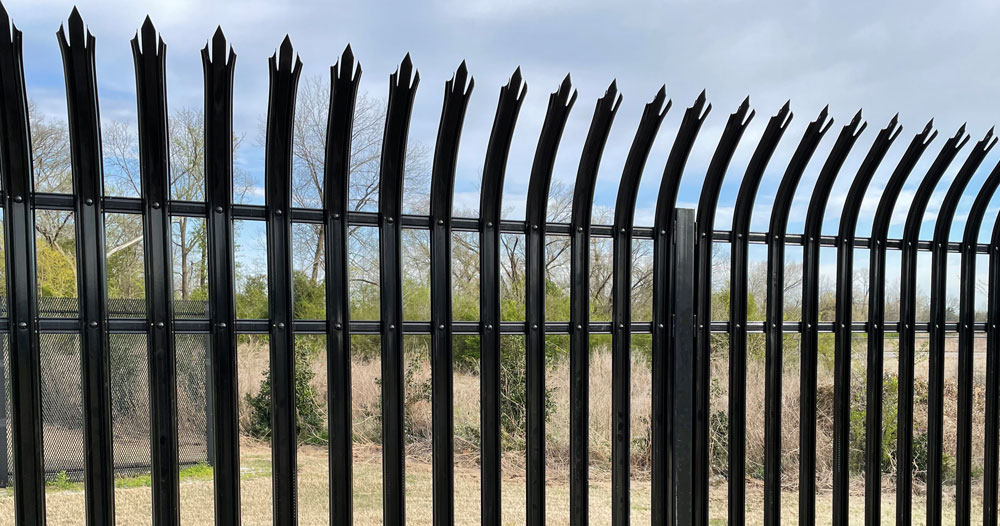

AMICO Security Palisade fence system includes 4500 Series Flat Pales, the 4600 Series Tri-Point Pales and the 4700 Bent Tri-Point Pales for enhanced deterrence. The AMIGUARD® 4000 Series Palisade Fence System is available in 6-, 7-, 8- or 10-feet heights.
AMICO Security offers three highly corrosion resistant finishing options:
- Hot-Dip Galvanizing
- AMICOAT™ Powder coating over E-Coating or primer
- AMICOAT™ Duplex Coating, Powder coating over Hot-Dip Galvanizing
These finishes help protect and add color to our base materials creating stunning visual effects.
All Palisade fences can be installed using the AMIGUARD® Framework or the Chameleon® Bypass Rail Framework system with round or square posts. Both innovative frameworks reduce the labor costs significantly compared to traditional systems.
OPTIONS
AMIGUARD® 4500 SERIES FLAT PALES

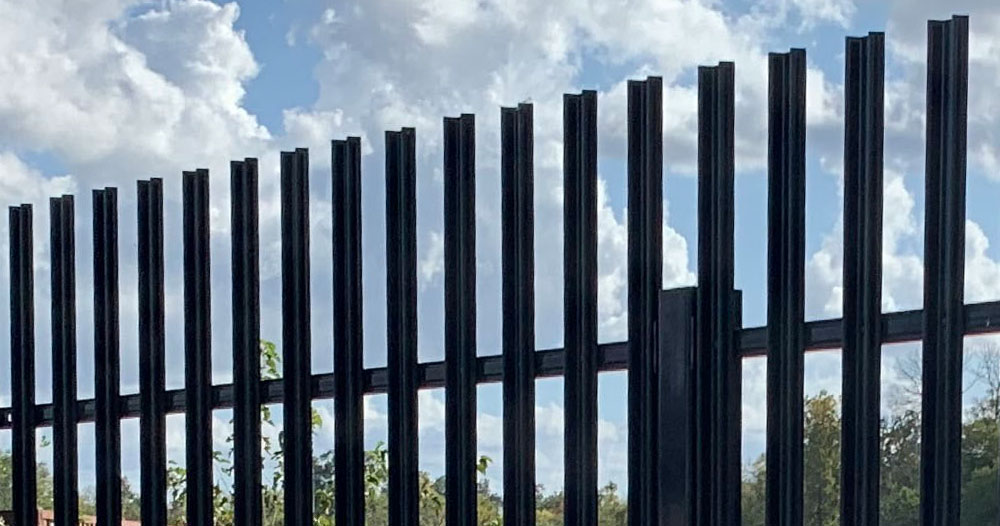

The AMIGUARD® 4500 Series Flat Pales use the same W-steel profile as the Tri-Point styles and offer the same structural strength with a less intimidating look. The AMIGUARD® 4500 style has the traditional spacing with a nominal gap of 3.25”.
AMIGUARD® 4600 SERIES TRI-POINT PALES

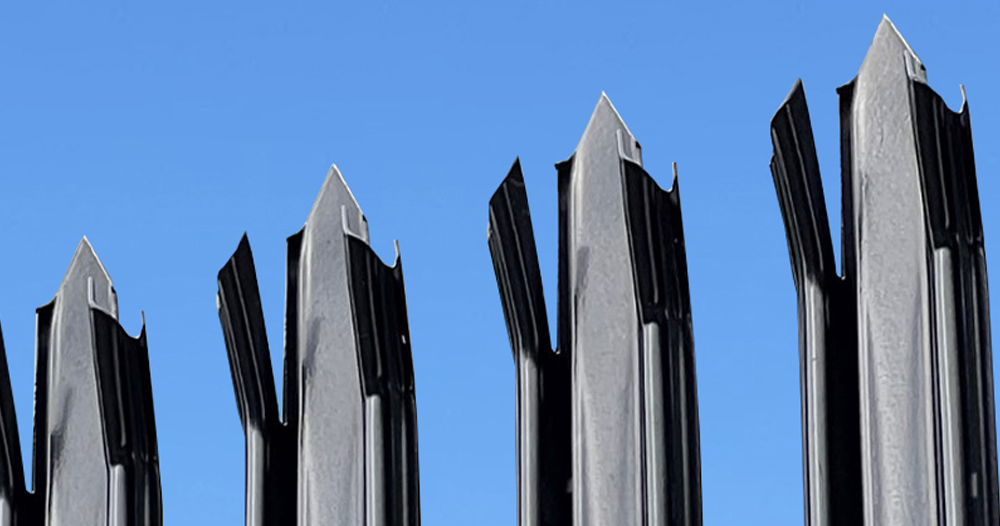

The AMIGUARD® 4600 Series Tri-Point Pales with their sharp points deter intruders from climbing over the fence. The AMIGUARD® 4600 style has the traditional spacing with a nominal gap of 3.25”.
AMIGUARD® 4700 SERIES BENT TRI-POINT PALES
The AMIGUARD® 4700 Series Bent Tri-Point Pales is the most popular style with the most intimidating look. The AMIGUARD® 4700 style has the traditional spacing with a nominal gap of 3.25”.

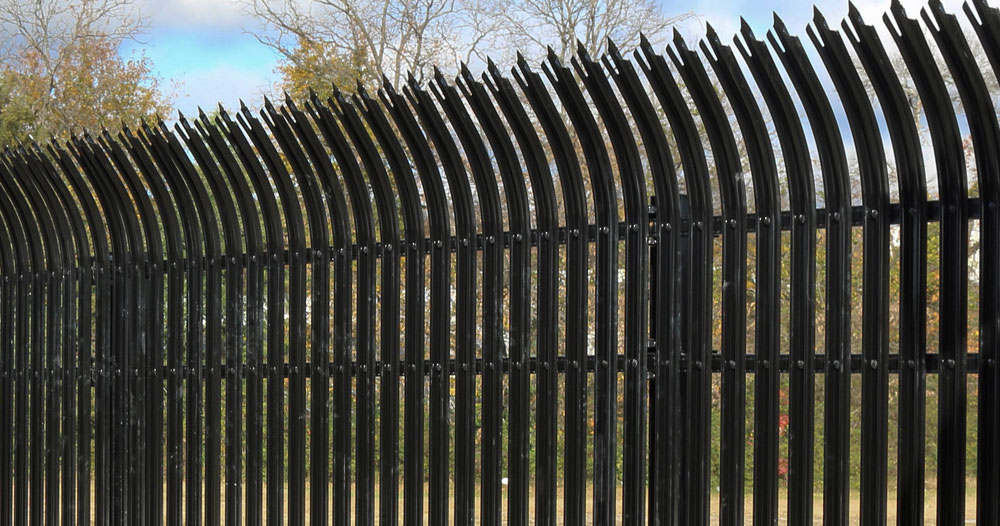

AMIGUARD® 4540, 4640 & 4740 WITH ANTI-SCALE SPACING
AMIGUARD® 4540, 4640 & 4740 styles have a smaller spacing between pales to deter climbing.
AMIGUARD® 4580, 4680 & 4780 WITH EXPANDED METAL

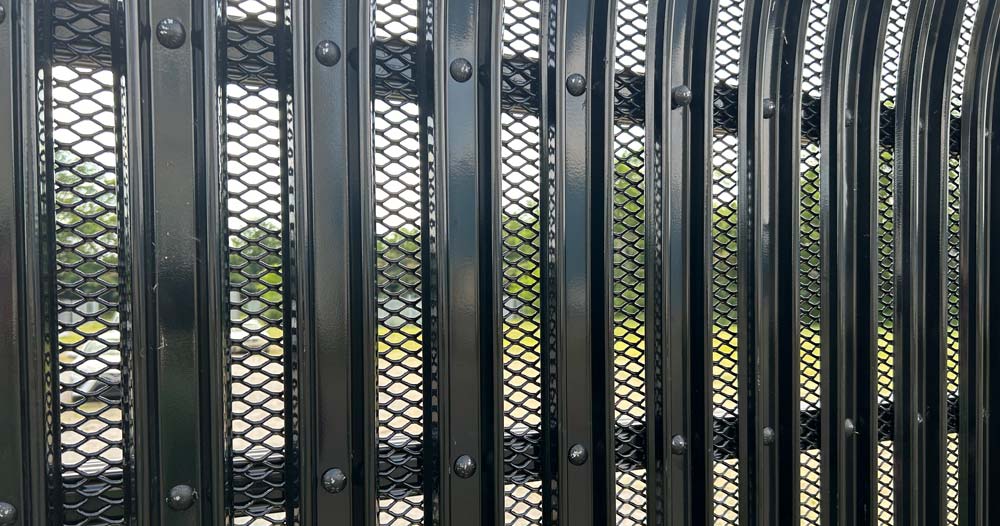

The AMIGUARD® 4000 Series Palisade Fence System with the Anti-Scale option is available with Expanded Metal mesh installed between the pales and the Infini-Rails adding an extra layer of security to the fence system which is difficult to breach.
OPTIONS OF AMIGUARD® 4000 SERIES PALISADE FENCE SYSTEM
Standard Spacing | Anti-Scale Spacing | Anti-Scale with Expanded Metal | |
Flat Pale | 4500 | 4540 | 4580 |
Tri-Point Pale | 4600 | 4640 | 4680 |
Bent Tri-Point Pale | 4700 | 4740 | 4780 |
AMIGUARD® FENCE FRAMEWORK
The AMIGUARD® Through Post Fence Framework is a patented “unitized” fencing framework which incorporates innovative components. Tied together this creates a total curtain wall perimeter barrier.
AMIGUARD’s unique approach incorporates innovative solutions to solve common high security concerns including aesthetics, a seamless design, and ease of installation.
The AMICO Framework allows you to incorporate various types of infill panels, making it the most versatile high security option on the market.
AMIGUARD® is available in both galvanized and powder coated AMICOAT™ finishes, with up to a 10-year limited warranty. AMICO Security also offers a complete line of walk gate, double drive and slide gates.
UNITIZED CONSTRUCTION
AMICO’s unitized construction method ties the entire Perimeter Framework together. Amiguard Posts® anchor the complete system to the ground.
The full length of the fence is tied together using Infini-Rails®. This ensures that any load or impact to the fence is distributed throughout the entire system, greatly enhancing the strength of AMIGUARD®.
Each panel is tied together and through bolted to the framework with Diamond Fasteners® and Finish Plates®. This creates a curtain wall to further enhance the strength of the system.
WIND LOAD AND BREACH TESTING
The patented AMIGUARD® Framework is one of the most thoroughly engineered and tested Perimeter Systems on the market today. This innovative perimeter barrier was developed to maximize strength, wind load, and breach time per ASTM standards.

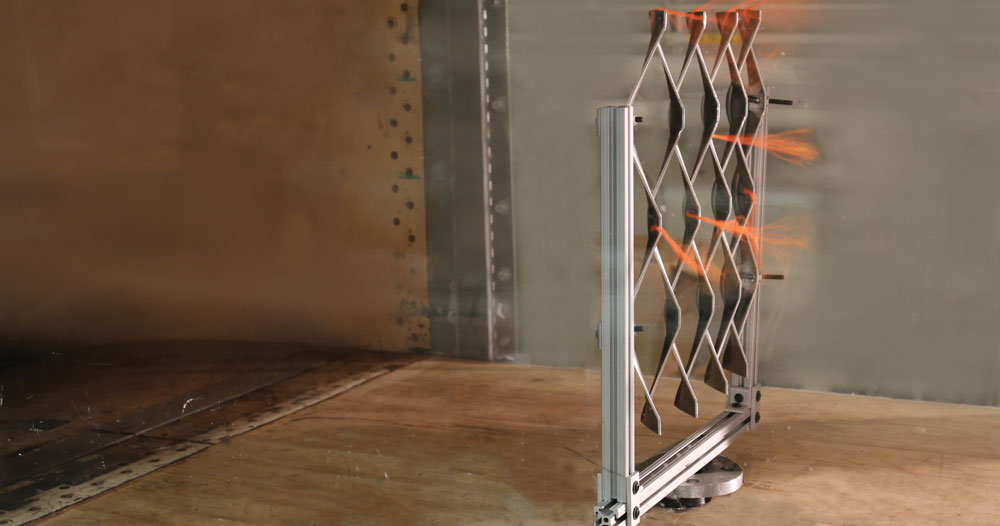

AMICO conducted Finite Element Analysis to verify AMIGUARD’S capacity. The results were then tested and verified at Georgia Tech’s aerospace wind tunnel.
COMPONENTS
AMIGUARD POSTS®

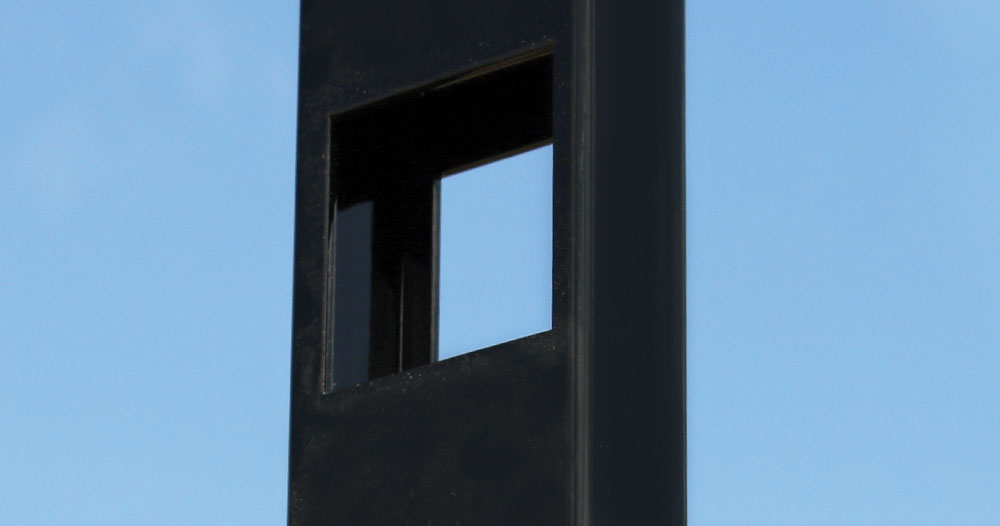

AMIGUARD’s prefabricated posts are specifically designed to anchor the entire system to the ground. Unlike other fences, Amiguard Posts® are plasma cut to allow the Infini-Rail® to pass directly through the post eliminating the need for fittings and hardware which are typical weak points within the system.
This feature also significantly reduces installation time and cost by eliminating fittings, clamps and the need to cut the rails during installation.
SECURA - SLEEVE®

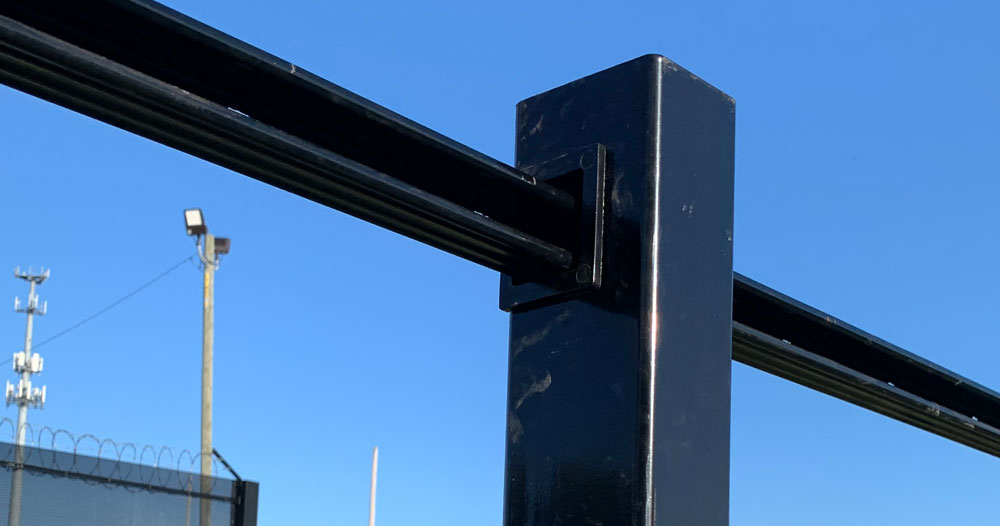

The AMICO Secura-Sleeve® is a two part insert that slides through the Amiguard Posts® to provide a smooth surface to pass the Infini-Rail® through.
Secura-Sleeve® prevents water intrusion which would result in corrosion and freeze expansion that would compromise the performance and longevity of the system.

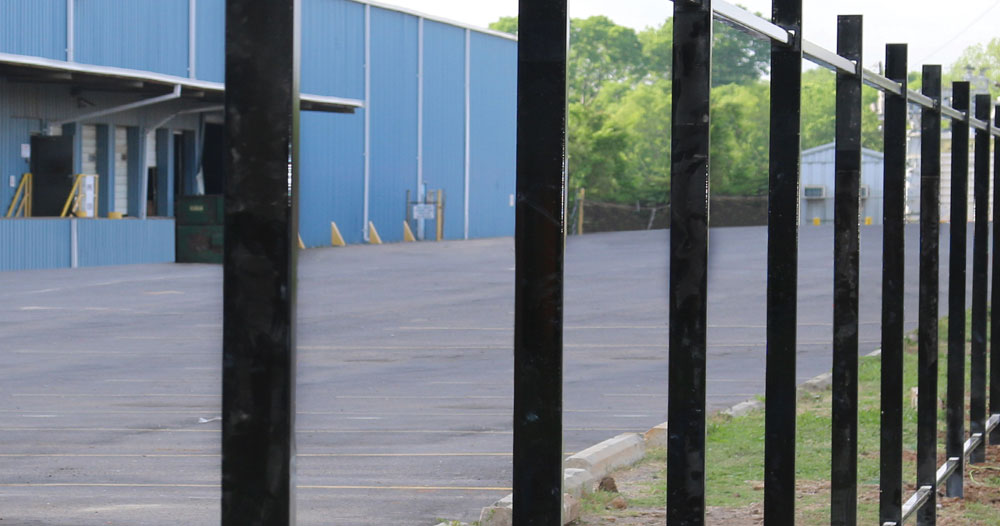

INFINI-RAIL®

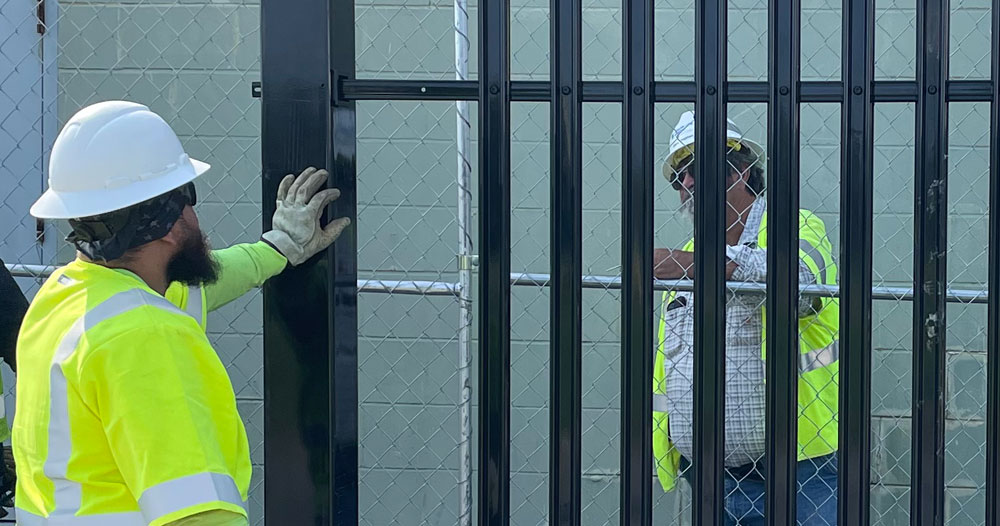

Infini-Rail® is AMICO’s continuous rail design which eliminates cutting rails between posts, typical in traditional fences. Infini-Rail® is an engineered
shape that is stronger and lighter than traditional rails.
Infini-Rail® ties the entire system together the full length of the fence. Additionally, it can discretely accommodate impact and fiber optic cables
throughout the fence.
Infini-Rail® with fastener-less installation – With the introduction of our fastenerless friction-fit splice system, we made the installation even easier. Compared to traditional rail fencing systems, our newly updated Infini-Rail®
system allows time saving of up to 50%.
MESH and PANELS

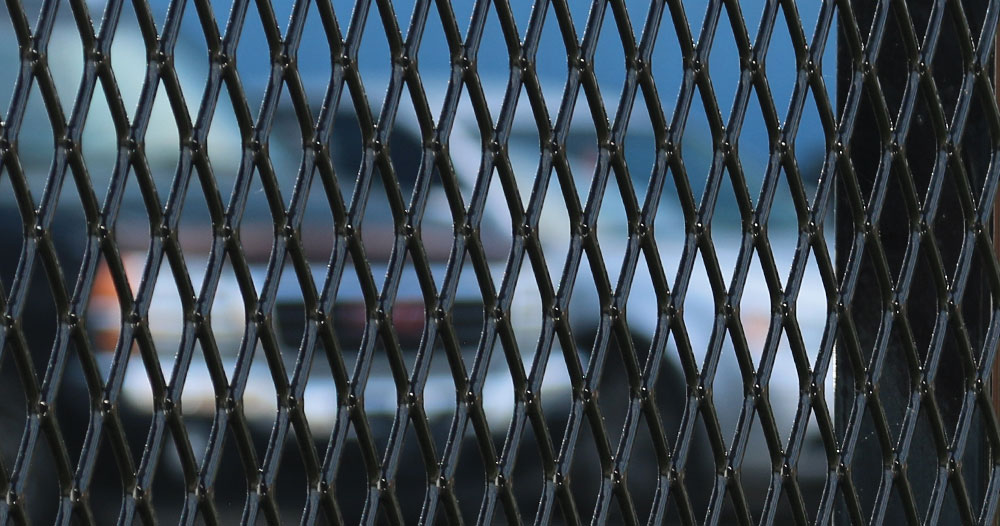

The AMIGUARD® Framework was designed to accommodate various types of infill. This allows customers to customize the system to defend against a wide array of threats. As the world’s largest producer of meshes for security, AMICO offers a wide array of medium to high security designs.
These meshes and infills can be produced to meet many project specifications including: anti-climb, anti-cut, ballistic, visual screening and a broad spectrum of architectural appearances.
CHAMELEON® BYPASS FRAMEWORK
The Chameleon® System is available with round posts or square posts, named Chameleon, or Chameleon2 respectively.
Chameleon® uses a bypass rail system which is very flexible in terms of post spacing and offers a great variety of fence infills.
Infills range from expanded metal panels to welded wire panels and palisade fencing.
Adaptable
Allows you to utilize existing fence posts already set in place.
Saves Time
Saves time (up to 40% over other solutions) and materials.
Install Options
Allows you to utilize existing grounding systems.
Secure
Can increase the security level of an existing chain link fence.
Unlimited Options
Unlimited security mesh options.
Post Options
Available with round or square posts.
Finish Options
Available with choice of finishes.
COMPONENTS
AMIGUARD AMICLAMP®

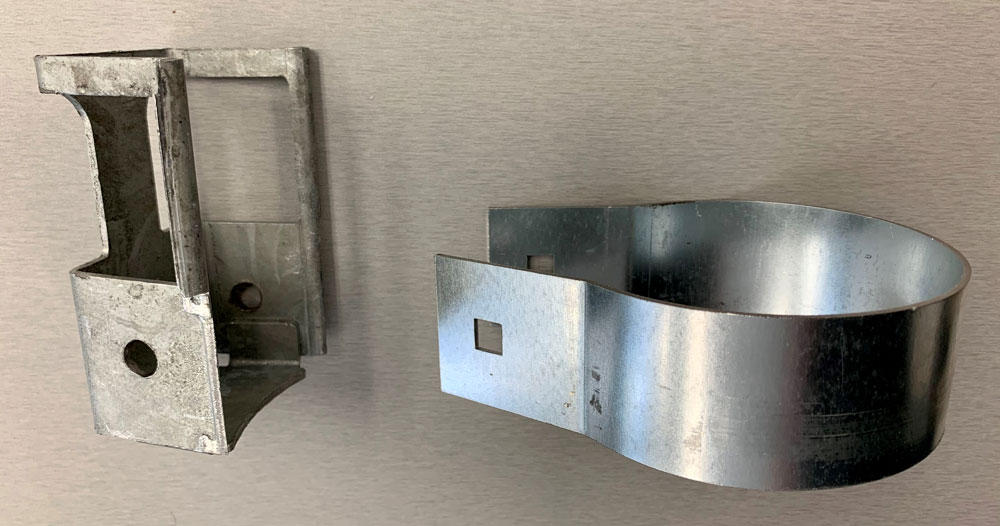

The patented Chameleon® System, U.S. Design Patent No. D996,198, allows you to upgrade an existing chain link fence to the AMIGUARD® Perimeter System. The patented AMICLAMP® design allows easy attachment to an existing post to accommodate the AMIGUARD Infini-Rail®.
The Chameleon system works with various round post sizes including 2-3/8”, 2-7/8”, 4”, and 6-5/8”. The Chameleon2 system includes square posts ranging from 3”x3”, 4”x4”, 6”x6” to 8”x8”.
FINISHES
All of AMICO Security’s finishing processes involve a zinc layer for superior corrosion protection. While a traditional paint layer aims to prevent water from touching the steel, a zinc layer provides a superior cathodic protection replacing the steel anode with a zinc anode resulting in zinc oxide which forms a protective layer instead of rust.
AMICO Security offers three highly corrosion resistant finishing options:
Hot-Dip Galvanizing
AMICOAT™ Powder Coating over E-Coating or primer base
AMICOAT™ Duplex Coating, Powder coating over Hot-Dip Galvanizing
INFINI-RAIL®
Infini-Rail® is AMICO’s continuous rail design which eliminates cutting rails between posts, typical in traditional fences. Infini-Rail® is an engineered
shape that is stronger and lighter than traditional rails.
Infini-Rail® ties the entire system together the full length of the fence. Additionally, it can discretely accommodate impact and fiber optic cables throughout the fence.
Infini-Rail® with fastener-less installation – With the introduction of our fastenerless friction-fit splice system, we made the installation even easier. Compared to traditional rail fencing systems, our newly updated Infini-Rail®
system allows time saving of up to 50%.
INFILL STYLES
The Chameleon® Retrofit system works with any Infill Style offered under the AMIGUARD® product lines.
Chameleon® is compatible with the AMIGUARD® 4000 Palisade fence, the AMIGUARD® 5000 series wire meshes, it works with our 6000 and 7000 series expanded metal meshes.
It works with our APEX series, the Architectural Expanded Metal product line (shown).
AMIGUARD® 4000 PALISADE FENCE DETAILS
AMIGUARD® Perimeter System
Chameleon® Bypass Framework
AMIGUARD® 8000 SERIES GATE
AMICO Security is a leading single-source provider of integrated access control solutions and expert technical support for industrial, commercial, and residential applications. The AMIGUARD® 8000 Series Gates are fully integrated with our Security fence product lines and AMIGUARD® meshes.
Since 1990 we have partnered with contractors, installers, architects, and engineers to deliver high-quality designs, products, and services for complete access control. Our knowledge and experience is specialized across multiple security platforms ranging from residential lifestyle and community entry, to industrial and commercial access, to the most stringent high security protection demands.
AMIGUARD® 8000 Series Gates from AMICO Security provide security and access control for industrial, commercial and residential sites. Specify the gate alone, or request a complete, integrated solution with the gate operator and access control system that meets your project requirements. AMICO Security also offers gate customization services.
